PE3501
Product Specification
Evaluation Kit
Evaluation Kit Operation
The TSSOP Prescaler Evaluation Board was designed
to help customers evaluate the PE3501 Divide-by-2
Prescaler. On this board, the device input (pin 2) is
connected to connector J1 through a 50 ? transmission
line. A series capacitor (C1) provides the necessary DC
block for the device input. It is important to note that the
value of this capacitance will impact the performance of
the device. A value of 15 pF was found to be optimal
for this board layout; other applications may require a
different value.
The device output (pin 7) is connected to connector J3
through a 50 ? transmission line. A series capacitor
(C2) provides the necessary DC block for the device
output. Note that this capacitor must be chosen to have
a low impedance at the desired output frequency the
device. The value of 47 pF was chosen to provide a
wide operating range for the evaluation board.
The board is constructed of a two-layer FR4 material
with a total thickness of 0.031”. The bottom layer
provides ground for the RF transmission lines. The
transmission lines were designed using a coplanar
waveguide above ground plane model with trace width
of 0.030”, trace gaps of 0.007”, dielectric thickness of
0.028”, metal thickness of 0.0014” and ε r of 4.4. Note
that the predominate mode for these transmission lines
is coplanar waveguide.
J2 provides DC power to the device. Starting from the
lower left pin, the second pin to the right (J2-3) is
connected to the device V DD pin (1). Two decoupling
capacitors (10 pF, 1000 pF) are included on this trace.
?2005-2013 Peregrine Semiconductor Corp. All rights reserved.
It is the responsibility of the customer to determine
proper supply decoupling for their design application.
The DEC pin (3) must be connected to a low
impedance AC ground for proper device operation. On
the board, two decoupling capacitors (C6 = 10 nF, C4
= 10 pF), located on the back of the board, perform this
function.
Applications Support
If you have a problem with your evaluation kit or if
you have applications questions, please contact
applications support:
E-Mail: help@psemi.com (fastest response)
Phone: (858) 731-9400

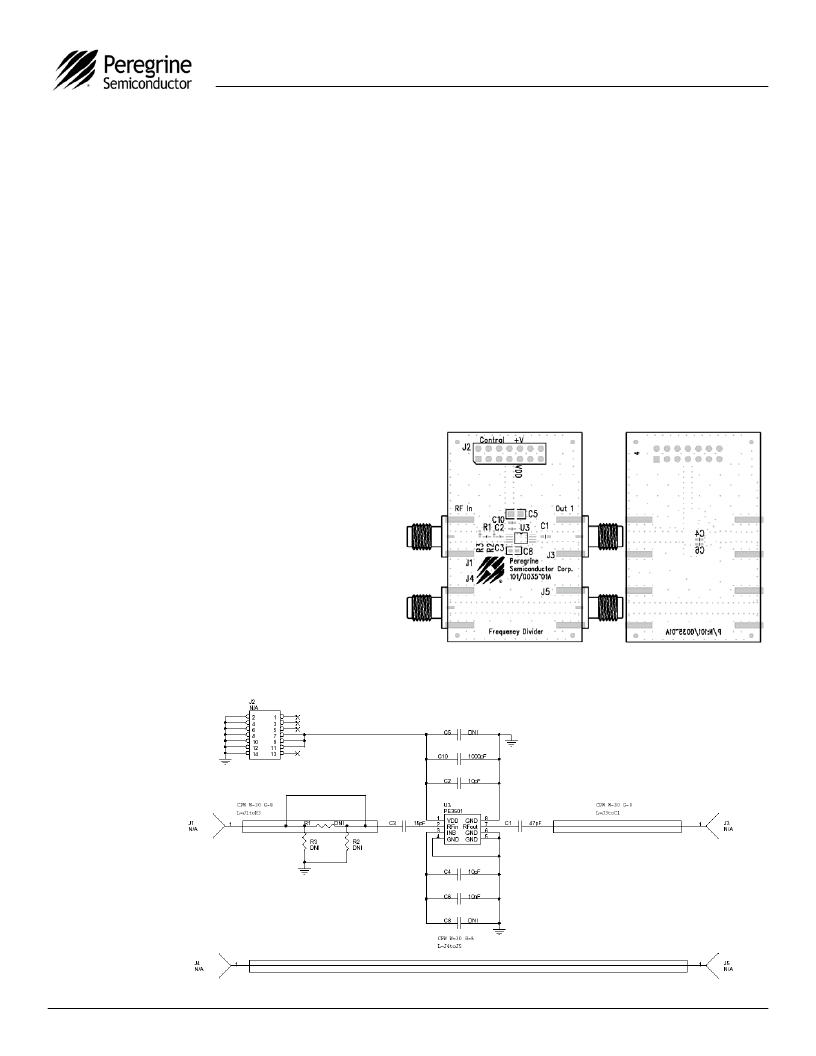

Figure 10. Evaluation Board Layouts
Peregrine Specification 101/0035
Figure 11. Evaluation Board Schematic
Peregrine Specification 102/0013
Document No. DOC-36714-3 │ UltraCMOS ? RFIC Solutions
Page 6 of 8
